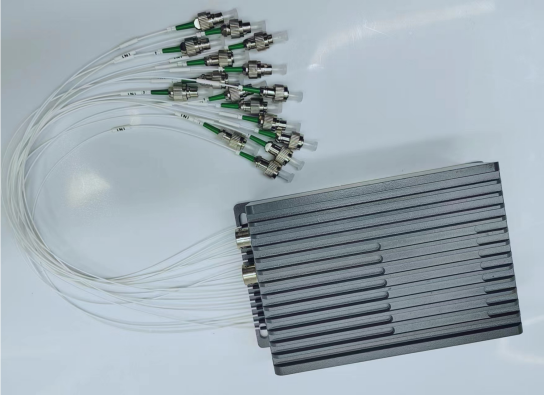

FBG AERO-Interrogator︱TVS1600-Aero
Application
▪ Aircraft temperature, strain and vibration monitoring
▪ Large buildings and other construction safety monitoring and health monitoring
▪ Measure strain, temperature, pressure, etc
▪ Deformation monitoring of composite materials
▪ Aircraft temperature, strain and vibration monitoring
▪ Large buildings and other construction safety monitoring and health monitoring
▪ Measure strain, temperature, pressure, etc
▪ Deformation monitoring of composite materials
Key Features
▪ Ultra-Compact / Low Weight
▪ Synchronous acquisition of all channels, 100Hz
▪ Dynamic high speed measurement, more channels, suitable for engineering applications
▪ The structure is compact and durable
▪ Physical parameters such as temperature, strain and vibration are monitored
Performance Properties
|
Model |
TVS1600-Aero |
|
Number of channels |
16 |
|
Wavelength range |
40nm（1525nm～1565nm） |
|
Wavelength resolution |
1 pm |
|
Wavelength accuracy |
≤10 pm |
|
Wavelength repeatability |
≤3 pm |
|
Sweep frequency |
100 Hz |
|
Dynamic range |
30 dB |
|
Optical connectors |
FC/APC |
|
Interface |
Ethernet |
|
Operating conditions |
-20℃~60℃ |
|
Input voltage |
DC 9~36V/AC100~240V/50-60Hz |
|
Power consumption at 12 V |
5 W typ, 10 W max |
|
Dimensions/weight |
145 × 85 × 45mm；0.5kg |
