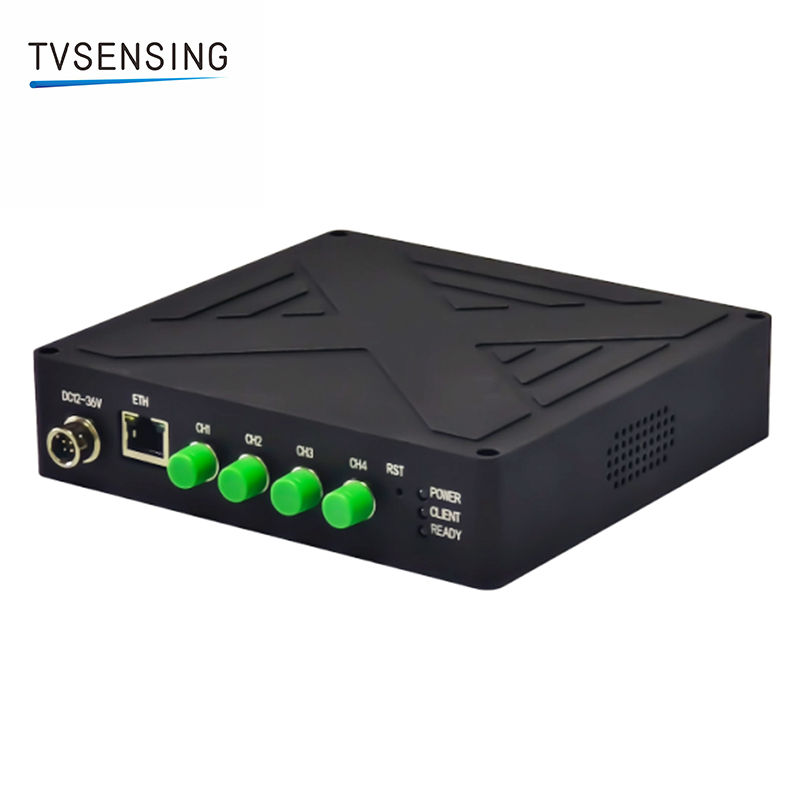

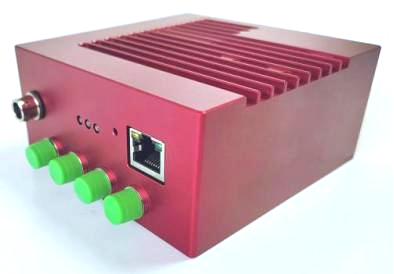

FBG MINI-Interrogator︱TVS1600-mini
Application
▪ Temperature measurement of oil field pipeline
▪ Large buildings and other construction safety monitoring and health monitoring
▪ Measure strain, temperature, pressure, etc
▪ Deformation monitoring of composite materials
Key Features
▪ Small size, light weight, easy to use
▪ Wavelength and spectrum measurement functions
▪ Synchronous acquisition of all channels, 100Hz/1kHz/2.5kHz
▪ Dynamic high speed measurement, more channels, suitable for engineering applications
▪ The structure is compact and durable
▪ Physical parameters such as temperature, strain and vibration are monitored
Performance Properties
Model |
TVS1600-mini-100 |
TVS1600-mini-1000 |
Number of channels |
4 |
|
Wavelength range |
40nm(1525nm~1565nm) |
|
Wavelength resolution |
1 pm |
|
Wavelength accuracy |
≤10 pm |
|
Wavelength repeatability |
≤3 pm |
|
Sweep frequency |
100 Hz |
1000Hz Optional: 2500Hz |
Dynamic range |
30 dB |
|
Optical connectors |
FC/APC |
|
Interface |
Ethernet |
|
Operating conditions |
-20℃~60℃ |
|
Input voltage |
DC12V/AC100~240V/50-60Hz |
|
Power consumption at 12 V |
4 W typ, 5 W max |
|
Dimensions/weight |
102 × 102 ×48 mm; 500 g |
153×153×37mm; 750g |
